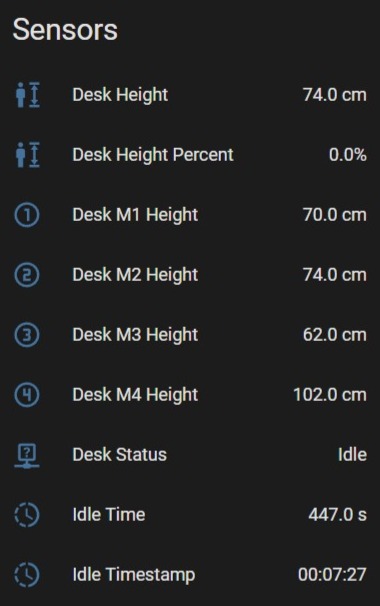

Home Assistant Screen Layout - What it all does - Sensors

Desk Height (defaults to cm)

Shows the height of the desk that is being returned from the desk’s controller.

Desk Height Percent

Shows the height of the desk as a percentage value. This is used by the Cover control which can go from 0% to 100%.

Desk M1, M2, M3, M4 Height (defaults to cm)

Shows the height of the memory preset button that is being returned from the desk’s controller.

Desk Status

Shows if the desk is currently Idle, Raising, or Lowering.

Idle Time (seconds)

Timer on the DeskUp Pro device that counts the number of seconds the desk has been idle/not moved for.

Use this sensor in Home Assistant automations when you want to trigger an automation to start after the desk has been idle for X number of seconds.

Idle Timestamp (days, hh:mm:ss)

Converts the idle seconds into a timestamp value that can be displayed on a Home Assistant dashboard.

Days will only be shown if the desk is idle for 1 day.

e.g. 2 days, 04:45:02

or just 04:45:02 (if days is 0)
